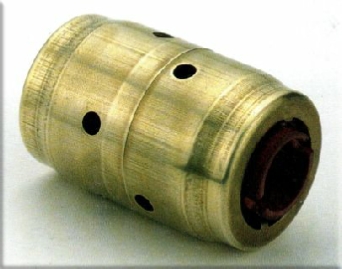

Integral Seal Case
OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
1.2
10
-30°C ~ 200°C

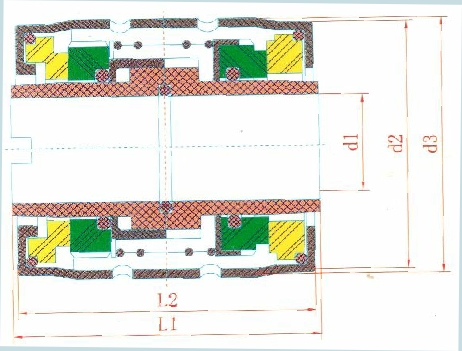

Model
d1
d2
d3
L1
L2
2.2
20
44.6
47.8
75
71.5
Case H68
Axial Pipe 351 - 2 Phenolic Plastic
Stationary Ring 6 - 6 - 3 Tin Bronze
Rotary Ring 20Cr
O-Ring NBR
Coil Spring 65Mn 65Mn
