OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
0.6Mpa
10m/s
-30°C ~ 200°C

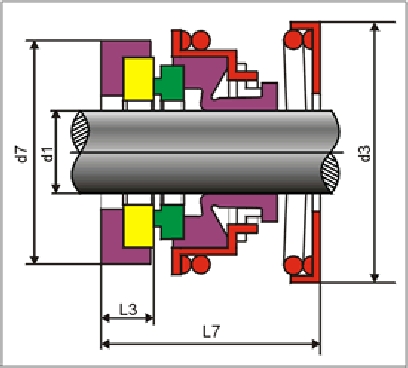

Stationary Ring
Spring and Other Parts
Secondary Seal
Rotary Ring
|
d1 |
d7 |
d3 |
L7 |
L3 |
|
13mm |
29,5 |
31,5 |
32 |
8 |
|
14mm |
29,5 |
31,5 |
32 |
8 |
|
15mm |
29,5 |
31,5 |
26/32 |
8 |
|
16mm |
29,5 |
31,5 |
26/32 |
8 |
Rotary face are Car
Stationary face are Cer
Bellows are Nit or Vit
Other parts are St-Steel
D70
