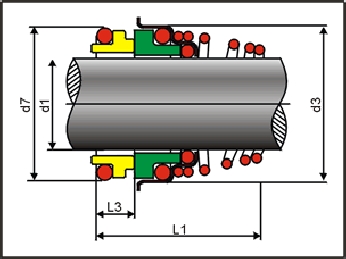

D6
d
d3
d7
L1
L2
10
20
18.1
20.5
5.5
11
22
20.6
23.5
5.5
12
22
20.6
23.5
5.5
13
25
23.1
28
6
14
25
23.1
28
6
15
29
26.9
30
7
16
29
26.9
30
7
17
29
26.9
30
7
18
33
30.9
32
8
19
33
30.9
33
8
20
33
30.9
33
8
21
38
35.4
33
8
22
38
35.4
33
8
23
38
35.4
33
8
24
38
35.4
33
8
25
40
38.2
35.5
8.5
28
46
43.3
39
9
29
46
43.3
39
9
30
46
43.3
39
9
32
46
43.3
39
9
33
48
53.5
50.5
11.5
35
50
53.5
50.5
11.5
38
58
60.5
50.5
11.5
40
58
60.5
50.5
11.5
OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
1
15
-30°C ~ 200°C

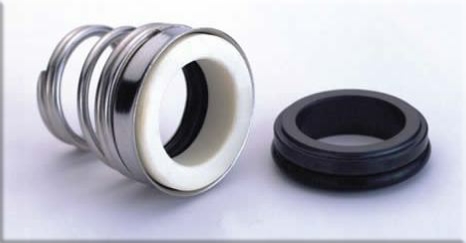

Stationary Ring Carbon/SIC/TC)
Spring and Other Parts(SUS304/SUS316)
Secondary Seal (NBR/EPDM/VITON)
Rotary Ring (Ceramic/SIC/TC)
