D400
OPERATING LIMITS
• d1
10 - 100 mm
• p1
1.0 MPa
• t
-40°C ~ 205°C
• vg
10 m/s

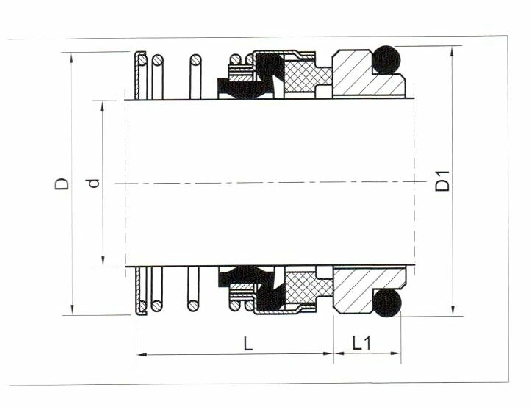

d
D
D1
L
L1
10
22.0
21.0
23.9
8.6
12
22.0
23.0
23.9
8.6
14
26.5
25.0
26.4
8.6
16
28.0
27.0
26.4
8.6
18
29.5
33.0
27.5
10.0
20
31.6
35.0
27.5
10.0
22
31.6
37.0
27.5
10.0
24
40.0
39.0
30.0
10.0
25
40.0
40.0
30.0
10.0
28
42.5
43.0
32.5
10.0
30
45.0
45.0
32.5
10.0
32
47.5
48.0
32.5
10.0
33
47.5
48.0
32.5
10.0
35
50.0
50.0
32.5
10.0
38
54.5
56.0
34.0
11.0
40
57.0
58.0
34.0
11.0
43
60.5
61.0
34.0
11.0
45
63.0
63.0
34.0
11.0
48
64.0
66.0
34.0
11.0
50
67.8
70.0
34.5
13.0
53
71.0
73.0
34.5
13.0
55
74.0
75.0
34.5
13.0
58
80.0
78.0
39.5
13.0
60
82.5
80.0
39.5
13.0
63
82.5
83.0
39.5
13.0
65
85.0
85.0
39.5
13.0
68
85.0
90.0
37.2
15.3
70
92.0
92.0
44.7
15.3
75
100.0
97.0
44.7
15.3
80
105.0
105.0
44.3
15.7
85
110.0
110.0
44.3
15.7
90
115.0
115.0
49.3
15.7
95
119.0
120.0
49.3
15.7
100
124.0
125.0
49.3
15.7
MATERIALS:
• Seal faces : carbon graphite (resin-impreg.), silicon carbide, tungsten carbide
• Stationary seats : alumina ceramic, Ni-resist, silicon carbide, tungsten carbide
• Bellows: Neoprene, NBR, FPM, EPDM
• Springs, other metal components: AISI 304, 316, 316Ti
• Secondary seals: Neoprene, NBR, FPM, EPDM
