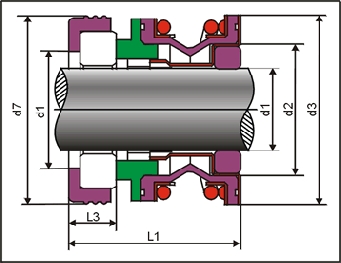

d
d1
d7
d3
d6
d2
L1
L3
3/8”
9.52
22.225
23.80
14.30
17.42
22.22
6.20
1/2”
12.70
25.40
26.97
17.45
20.63
22.80
6.20
5/8”
15.875
30.1
30.94
20.63
23.80
26.50
8.70
5/8”H
15.875
31.75
30.94
20.63
23.80
30.00
10.30
3/4”
19.05
34.935
34.11
23.80
26.87
30.00
10.30
1”
25.40
41.275
42.85
30.15
33.33
31.73
11.10
D2
OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
1
12
-30°C ~ 200°C

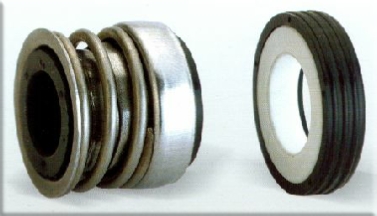

Stationary Ring Ceramic/SIC/TC)
Spring and Other Parts(SUS304/SUS316)
Secondary Seal (NBR/EPDM/VITON)
Rotary Ring (Carbon/SIC/TC)
